Bild DSC 300 Caliris

DSC 300 Caliris®

The DSC 300 Caliris® is the most comprehensive, most reliable and versatile DSC for material characterization on the market.
No matter if you are working in research & development, quality control, contract testing or the specification of materials for certain applications, information about a material’s behavior under changing temperature and different atmospheres is important.

Infos / Datasheet

Sie sehen gerade einen Platzhalterinhalt von Youtube. Um auf den eigentlichen Inhalt zuzugreifen, klicken Sie auf die Schaltfläche unten. Bitte beachten Sie, dass dabei Daten an Drittanbieter weitergegeben werden.

Mehr Informationen
Inhalt entsperren Erforderlichen Service akzeptieren und Inhalte entsperren

Inquiry sample measurement

Functional principle:

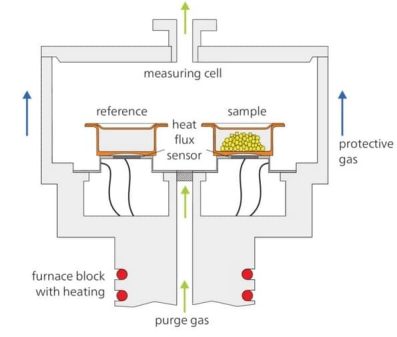

A DSC measuring cell consists of a furnace and an integrated sensor with designated positions for the sample and reference pans. The sensor areas are connected to thermocouples or may even be part of the thermocouple. This allows for recording both the temperature difference between the sample and reference side (DSC signal) and the absolute temperature of the sample or reference side.

DIN 51007 and ISO 11357-1 recommend the portrayal of endothermic processes with upward ordinate amplitude. In, for example, ASTM E793 and E794, downward application of the endothermic direction is suggested. This is why the NETZSCH Proteus® software allows for the direction of application for endothermic and exothermic processes to be selected.

Methodenentwicklung DSC

DSC 300 Caliris® supports with:

  • Material identification
  • Process optimization
  • Quality control (DSC 300 Caliris® Classic)
  • Phase diagrams
  • Kinetic analysis
  • Compatibility

Advantages of the DSC 300 Caliris® Classic:

  • S module for routine measurements
  • Maximum temperature range from -170 to 600 °C
  • Maximum heating rate of up to 100 K/min
  • ASC of up to 20 samples & calibration substances (optional)
  • Gas atmospheres: inert, oxidizing, static and dynamic operation
  • Various cooling options
  • UV accessories available for curing reactions
  • Proteus® software (including device license)
  • Colour touch display & LED status display

Advantages of the DSC 300 Caliris® Select & Supreme:

  • For DSC 300 Caliris® Select is a choice between a H, P and S module
  • Three different and interchangeable modules (H, P and S modules) are available for DSC 300 Caliris® Supreme
  • Maximum temperature range from -180 to 750 °C
  • Maximum heating rate of up to 500 K/min
  • ASC of up to 192 samples & 12 calibration substances (optional)
  • Gas atmospheres: inert, oxidizing, static and dynamic operation
  • Various cooling options
  • UV accessories available for curing reactions
  • Proteus® software (including device license)
  • Colour touch display & LED status display

For further information, please refer to the technical data sheet or the brochure.
