Shadow Sizing

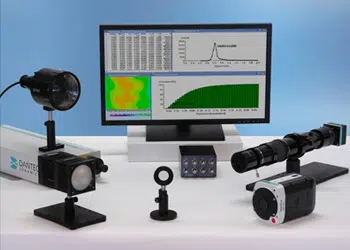

The DynamicStudio Shadow Sizer measures size, shape and velocity of particles using backlighting and image analysis software.
The Shadow Sizer can measure a wide range of particles types including bubbles, liquid droplets, solid particles and any object with a well-defined contour.
Data is analyzed by DynamicStudio and includes histograms of size distribution, spatial distribution plots, cumulative histograms and tables.

Features

  • Non-intrusive, whole-field particle sizing includes particle velocity, orientation, position and shape
  • Easy concept: what-you-see-is-what-you-get
  • Wide range of applications: droplets, bubbles, solid particles, static or in flows
  • No prerequisite information about the particles is required
