Evolved Gas Analysis (EGA) is the perfect tool for characterizing the thermal behavior of organics, inorganics, or polymers in more detail, elucidating the chemistry behind the processes.

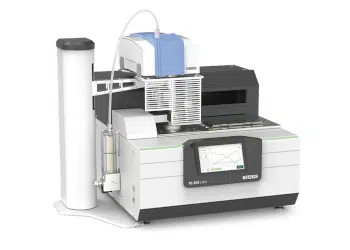

The PERSEUS^® TGA 309 Libra^® is robust and stands out by virtue of its high performance, compactness and attractive price. This instrument integrates the small but powerful FTIR with the TGA and has the potential to fit into any laboratory – be it in universities or industry, quality assurance or development.

Any existing NETZSCH TG 309 Libra^® Select and Supreme system can be upgraded with the PERSEUS^® coupling.

The PERSEUS^® TGA 309 Libra^® can be employed for the following application areas:

• Analysis of decomposition processes
• Solid-gas reactions
• Compositional analysis
• Evaporation, outgassing
• Detection of volatiles
• Analysis of aging processes
• Desorption behavior

Advantages of the PERSEUS^® TGA 309 Libra^®:

• DLaTGS detector does not require any liquid nitrogen cooling
• No separate transfer line required
• Space-saving design
• Maximum temperature range from room temperature to 1100 °C
• Maximum temperature of the transfer line: 200 °C
• Internal gas cell with KBr window (length: 70 mm; volume: 5.8 ml)
• Spectral range of FTIR data: 350 to 8000 cm^-1
• Automatic sample change is available as an option
• Additional coupling option to GC-MS or MS
• Proteus^® software (including device license)

For further information, please refer to the technical data sheet.
